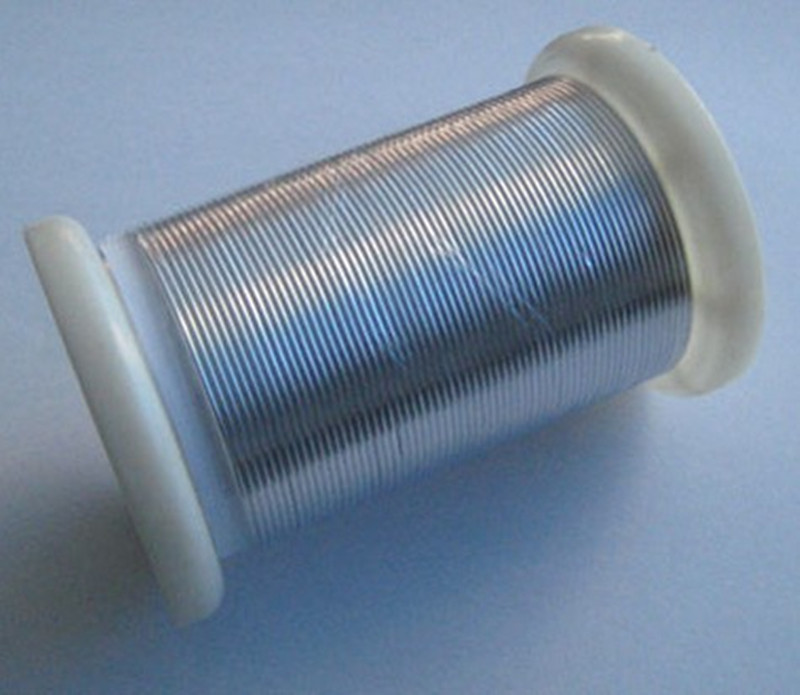

0.1mm pure molybdenum wire of 99.95%
pure molybdenum wire 1kg
0.1mm pure molybdenum wire of 99.95%
pure molybdenum wire of 99.95% Mo wire,its diameter can be from 0.1mm to 5.0mm.
It can be sed for making Mo powder and other semiconductor industry usage;Electronic pulse and medical equipment, cutting equipment and electrode application.
packing of 250 and 1kg per reel.
Test report of Mo
Element Ni   C Al
Concentration ≤0.0007%  ≤0.002% ≤0.0015%
Element  Ca  Fe        Si
Concentration ≤0.001% ≤0.0015% ≤0.001%
Element Mg P    Pb
Concentration ≤0.0001% ≤0.001% ≤0.001%
Element  Cu  W  N
Concentration ≤0.0003% ≤0.015% ≤0.002%
Element Se    K   AS/Bi
Concentration ≤0.001% ≤0.003% ≤0.001%
Element  Cd/Ti   Cr  S
Concentration ≤0.001% ≤0.002% ≤0.002%
Element   Mn   Mo1
Concentration ≤0.0005% Balance
Molybdenum spraying wire Properties:
1. The weight of single wire is up to 20-25kg without any welded joint, which results in enhancing the efficiency and decreasing the operating costs.
2. Diameter: above 0.1mm,;normal size0.5mm-3.0mm
3. Tolerance: 0.15mm + / -0. 025mm or + 0 / -0. 05mm

4. Tensile strength: >700-900N / mm2

5. Elongation: >20-5%.
