BBIEN supplies100g and 10CC no clean BGA tacky paste flux of lead free flux mixture with soldering wire welding

Performance characterisitic:
Compatible with Lead Free alloys such as
· Reflow-able with peak temperatures up to 270 °C
· Reflow-able in air and nitrogen
· Bright shiny soldered joints with clear residues
· Aggressive flux on various substrates such as
OSP-Cu, Immersion finishes and ENIG
· Clear non-tacky residues
· High tack to minimize skewing of components
· Low voiding
· Stencil Life of 8+ hours (process dependent)
· Classified as ROL0 per J-STD-004
· Compliant to Bellcore GR-78

Cleaning:
TF LF-01 Tacky paste fluxis a no-clean chemistry. The residues do not need to be removed for typical applications. If
residue removal is required, call our Technical Support.

Specification in details

TF LF-01 Tacky paste flux Introduction:
TF HF-01,tacky Paste Fluxes (TF) are designed to meet and exceed industry standards. It is RoHS standars,halogen- free type of tacky flux. TF LF-01 Tacky paste fluxare used for general touch-up and rework of PCBs, and for the attachment of spheres to BGA and m BGA packages. Operations such as soldering Flip Chip components to various PCB substrates also use TF. TF LF-01 Tacky paste fluxis available in water soluble, no-clean and RMA formulations and can be dot dispensed, screen printed or stencil printed. Available in 10cc syringe; 100g jars; with other sizes available upon request.
PHYSICAL PROPERTIES Specification
The basic physical characteristics

Project	Test results
Appearance	Light yellow/white tacky paste flux
Smell	Not fit for
Physical stability	By：5±2 ºC No layered or crystallization precipitation，45±2 ºC no layering phenomenon
Solid content	6.20.2%
Proportion	0.80±0.05
Acid value	19.2 ±1.0 mgKOH/g
Halogen content	No

Reliability performance

Project	Technical requirements	Test result
Water extract resistivity	JIS Z3197-86 JIS Z3283-86	By：5.0×104 ohm·cm
Bronze corrosion	IPC-TM-650 2.3.32	Pass
Viscosity:	/	400-580 kPa.
AgCrO4	IPC-TM-650 2.3.33	Pass
Halogen content	JIS Z3197-86 JIS Z3283-86	Pass

Surface insulation resistance

Standard test	Conditions	Standard	Test result
IPC-TM-650 2.6.3.3	40ºC, 95% RH, 96h	> 1.0×1011 Ohms	4.9×1011

Application:
THF-01 Tacky paste fluxis a No Clean Paste Flux designed as a Lead Free Solution for an array of Lead Free interconnect applications such as flip chip attach, sphere or ball attach, rework/repair of CSPs, BGAs, SMDs, or any Lead Free soldering application that requires a very tacky flux.TF LF-01 Tacky paste fluxalso can be used for some lead free solder wire,which can achive the better welding effect.

Application notes:
Standard Applications:
TF LF-01 Tacky paste fluxis designed for stencil/screen printing, rotating drum, slide fluxers and/or syringe applications.
Great for rework applications on all PCB packages of various electronic devices. TF LF-01 Tacky paste fluxis great for rework applications on all PCB packages.
TF LF-01 Tacky paste fluxcan be used in BGA/PGA sphere/pin attachment vehicle or for repair and reballing/repinning. This flux works on flip chip, chip scale package and flip chip bumping sites assemblies as a soldering paste flux.

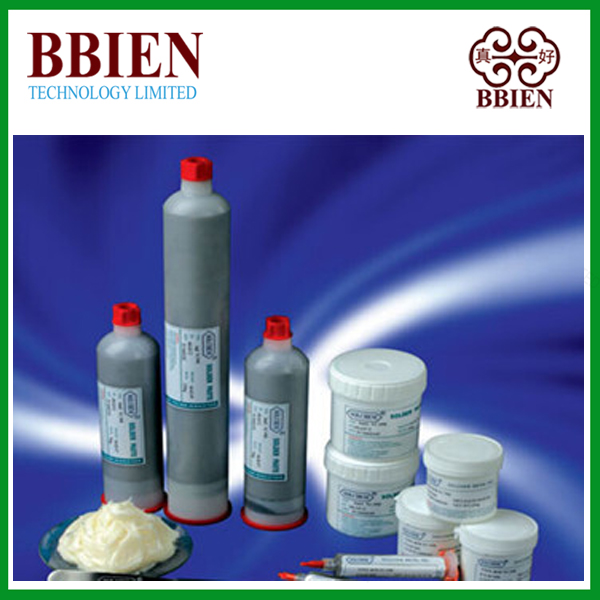

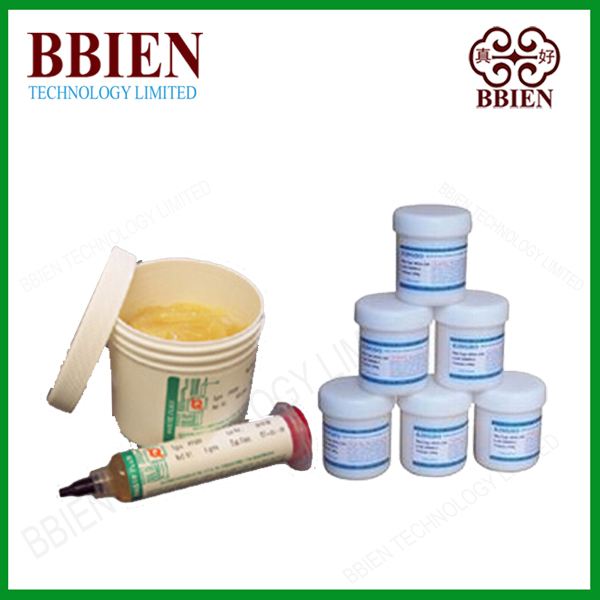

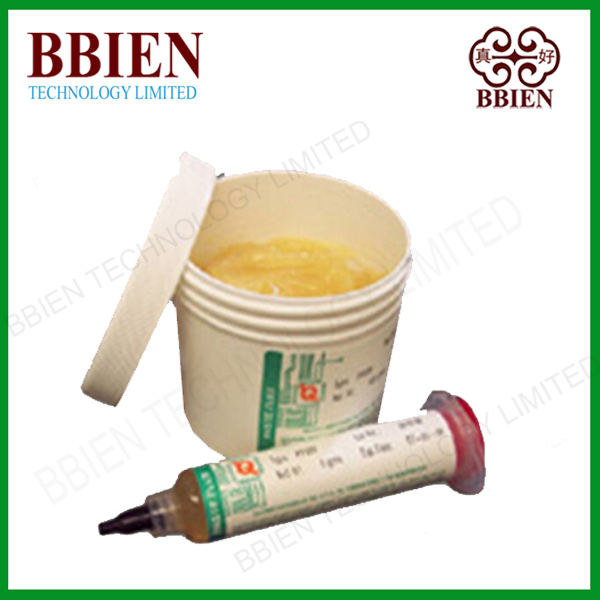

SHENZHEN BBIEN TECHNOLOGY LIMITED TF LF-01 Tacky paste flux could be classified as can/bottle packing and syringe packing type.

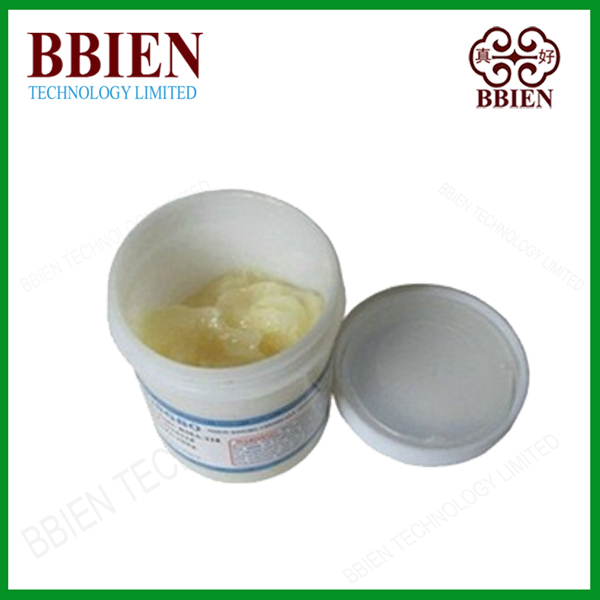

Each can/bottle holds the tacky pastes flux is 100g;

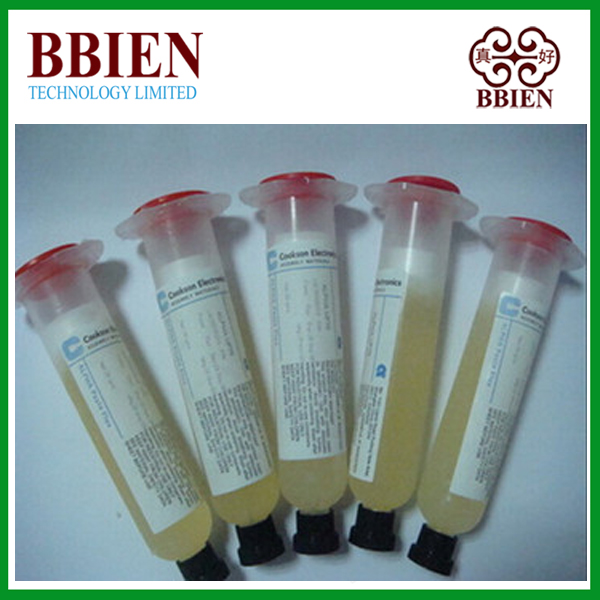

Each syringe can load the tacky paste flux is 30g or 10CC
The packing materials can be separated into inner layer of a bubble box and outer package of a paper carton so as to better secure for shipping and transportation.

Specification	Tacky paste BGA flux
Appearance	White or slight yellow tacky paste
Weight	100g/jar；20jars inner foam carton,paper carton of out pakage 30g/syringe，100syring/carton

Storage, Handling, and Shelf Life:
Refrigeration is the recommended optimum storage condition for TF LF-01 Tacky paste fluxto maintain consistent viscosity,reflow characteristics and overall performance.TF LF-01 Tacky paste fluxshould be stabilized at room temperature prior to printing. TF LF-01 Tacky paste flux fluxshould be kept at standard refrigeration conditions, 0-10°C (32-50°F). Please contact us if you require additional advice with regard storage and handling of this material. Shelf life is 6-10 months from date of manufacture when handled properly and held at 0-10°C (32-50°F).

Health & Safety:
This product, during handling or use, may be hazardous to health or the environment. Read the Material
Safety Data Sheet and warning label before using this product.
