BBIEN supply Tin lead series powder of  type3 Sn63Pb37 and Sn62Pb36Ag2 Pb series solder powder 25~45micron.

1.The welding powder is ball shaped,the dark part is a tin rich area and the light part is a lead rich area.The pictures show the good sphericity, homogenous alloy composition and smooth surface of the product.

2.Particle size classification and final typing technology enables stable particle size of the product provided to customers.

3. Low oxygen content
Oxygen content is strictly controlled during production and packing of allalloy welding powder.Leco oxygen determinator is adopted to determine the surface oxygen content and chemical assay is adopted to determine the total oxygen content.

4.Advanced powder classification and collection technology enables Type 2-Type 3 alloy welding powder free of powder smaller than 20um.

1.Common alloy composition and characteristics: (appendix)

SN	Alloy Brand	Solidus Temperature	LiquidusTemperature	Density g/cm3
1	Sn63Pb37	183	183	8.4
2	Sn60Pb40	193	190	8.8
3	Sn62.6pb37Ag0.4	183	216	9.3
4	Sn62pb36Ag2	183	202	9.13

2.Sn-Pb,Sn-Pb-Ag series powder Product specifications:

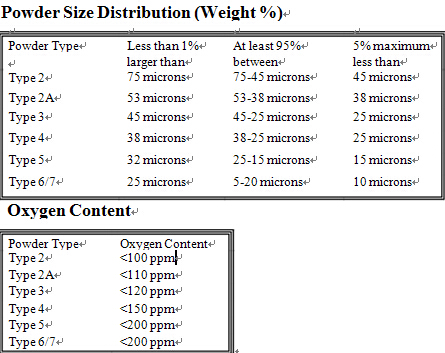

BBIEN can provide conforms to the J - STD - 005 standard specifications welding powder products; Typical particle size distribution table as follows, if you have any special request, please contact with us (another schedule).

Specification	Particle size classification	Particle size			Reference Standard
2.5#	-230/+500 -230/+500mesh	>63μm	25-63μm	<25μm	J-STD-005
		max1wt%	min85wt%	max5.0wt%
2.3#	-230/+400 -230/+400mesh	>63μm	38-63μm	<38μm
		max1wt%	min85wt%	max5.0wt%
3#	-325/+500 -325/+500mesh	>45μm	25-45μm	<25μm
		max1wt%	min85wt%	max10.0wt%
4#	-400/+500 -400/+500mesh	>38μm	20-38μm	<20μm
		max1wt%	min85wt%	max10.0wt%

3.Sn-Pb,Sn-Pb-Ag series powder oxygen content: (appendix)

specification	particle size	oxygen content(ppm)
2.5#	25-63μm	<80
2.3#	38-63μm	<70
3#	25-45μm	<90
4#	20-38μm	<120
5#	15-25μm	<180
6#、7#	5-15μm	<220



Usage of Sn63Pb37 ,Sn62Pb36Ag2 and Sn62.6Pb37Ag0.4 tin lead,tin lead silver series solder powder
BBIEN  technology production of spherical alloy solder powder, under accurate monitoring by the computer,are  carrying out the high quality standard of the alloy solder powder, can satisfy with the high quality demand of the solder paste . We can also according to customer requirements produce all kinds of special performance products.

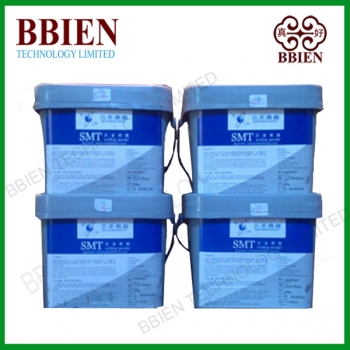

Packaging:All BBIEN powder is packaged in 5kg metallized mylar bags under inert gas. FIVE bags are packed in sealed polyethylene containers to prevent damage. Alternative packaging is available to satisfy customer requirements.
20kg/case20-25kg
