Acid core water soluble formula 0.7mm 0.4mm Sn99Ag0.3Cu0.7 RA core lead free high temperature solder wire for silver contain electrical products welding

Sn99Ag0.3Cu0.7solder wire Feature:
BBIEN Tecnology Ltd's Sn99Ag0.3Cu0.7acid core lead free silver solder wire is fast wetting and low spattering characteristics make it excellent for manual assembly and drag soldering applications.

It is safe to use and operator friendly. Inspection is also made easier by its clear residue.

--Fast melting,good wetting and expansibility.
--No break for the core,no splash and no odour.
--Good solderability and soldering joints with high brightness and strength.
--Good mechanical performance.
--Widely used in electronics,lighting,communication,radio,computer,instruments and other field.
--Residue is easy to remove by hot air after soldering work if necessary.
--Available in many alloy composition,other alloy composition are also available

The more informations about Sn99Ag0.3Cu0.7 high temperature meting lead free solder wire,please feel freely contact with Shenzhen BBIEN Technology Ltd

BBIEN is a professional enterprise in the development, manufacturing and sales of innovative materials used in the electronic assembly process. BBIEN is a full line supplier of reflowing Solder Paste, Cored Wire and bar Solder, metal powder, non-ferrous metal alloy wire,mixer machines, BGA Soldering Fluxes, SMD Adhesives, and some chemical materials soldering. BBIEN’S metal solders and alloy products could meet and up to international and domestic standard.

Exported areas.e.g.America,India,Germany,Russia,Poland,LTU,Switzerland,Turkey,Romannia,Bulgaria,Colombia,France etc.

The use of BBIEN Sn99Ag0.3Cu0.7solder wire results in a clear post-soldering residue without need for cleaning.and its excellent joint appearance allows for easy inspection.

Specification				Sn99-Ag0.3-Cu0.7 solder wire
Appearance				Lucent, no dirt on surface
Package				reel packing:100g,250g,500g,1kg,2kg per roll; tube packing:13g/tube,100tubes per carton10kg/carton
		Chemistry component
Specification				Sn99-Ag0.3-Cu0.7
Appearance				Lucent, no dirt on surface
Weight				G.W 500g/roll, 10kg/ctn
Chemistry component
Sn	Ag		Cu	Pb	Sb	Bi	Zn	Fe	Al	As	Cd
99	0.3		0.7±0.2	<0.01	<0.02	<0.01	<0.02	<0.02	<0.02	<0.03	<0.002

Sn99Ag0.3Cu0.7Alloy component and physical characteristic

oy component 合金成分	Melting point	Proposion g/cm3	Rigidity HB	Condut heat M.S.K	Extend Mpa	Extend rate %	Conductivity %
Sn99Ag0.3Cu0.7	230	7.4	9	64	32	48	16.0

Comparance between SnAgCu and SnPb capability

Component（wt%）成分		Sn99/Ag0.3/Cu0.7			Sn63/Pb37
Melting（^oC）熔点		227			183
Density（25 ^oC）密度		7.4			8.4
Heat cubage（J/kg · k）		220			176
Conduct heat （J/m · s · K）导热率		64			50
Extend intension（MPa）拉伸强度		32			44
Extend Rate（％）延展率		48			25
Resistance Rate（μΩm）电阻率		0.13			0.17
Extend Rate不同温度的延展率（％）	230^oC				91
	240^oC	77			92
	250^oC	77			93
	260^oC	77			93
	280^oC	78
Wetness Balance Test润湿测试		Ta	Tb	Fmax	Ta	Tb	Fmax.
	240℃	1.00	4.53	0.159	0.12	0.80	0.195
	250℃	0.86	2.79	0.181	0.11	0.64	0.200
	260℃	0.47	1.46	0.186	0.10	0.41	0.206
	270℃	0.31	0.80	0.192	0.07	0.32	0.211

The more informations about Sn99Ag0.3Cu0.7 high temperature meting lead free solder wire,please feel freely contact with Shenzhen BBIEN Technology Ltd

BBIEN SAC0307 high temperature lead free solder wire is ideal used for precious electronic, silver contain product, medical electronics, high-temperature electric machine, phone motherboard, printed circuit board (PCB), LED and SMT technique,as well as high-precision electronics circuit board. ,

How to use tin-bismuth solder wire:
Step1:Prepare the solder station or gas woldering gun

Step2:Before welding, please clean electric solder iron,remove the tin dross, and then set the thermostat temperature reach to SACX0307 solder wire's preheat temperature: 150 degrees to 180 degrees Celsius.
Stay automatic temperature rise to 227 degrees Celsius,which can be used to welding solder joints (before welding, you can take a small experiment, to ensure that the melting temperature can melt tin copper silver wire(Sn99Ag0.3Cu0.7), in order to avoid again when welding produce needless trouble).

Step 3:When the solder iron temperature or gas soldering gun temperature reaches 227 degrees Celsius, heating the Sn99Ag0.3Cu0.7 no clean core solder wire and used for circuit board solder joints (or other device being welding) welding heating.
When finishing to melt solder wire,it will get the fully soldering joints(Note: the Sn99Ag0.3Cu0.7 solder wire welding in the process,the peak temperature at 320 degrees to 350 degrees Celsius).

The more informations about Sn99Ag0.3Cu0.7 high temperature meting lead free solder wire,please feel freely contact with Shenzhen BBIEN Technology Ltd

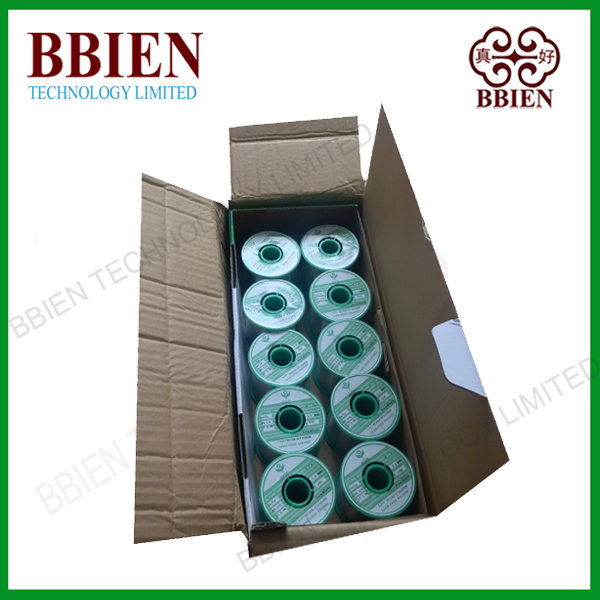

Packing of BBIEN SACX0307 solder wire
The Sn99Ag0.3Cu0.7 high temperature lead free solder wire could be classified as following packing :
Each reel holds the solder wire is 50g,100g,250g,500g or 1kg;
Each tube can pack 15g,35g
The packing materials can be separated into inner layer of a bubble box and outer package of a paper carton so as to better secure for shipping and transportation.

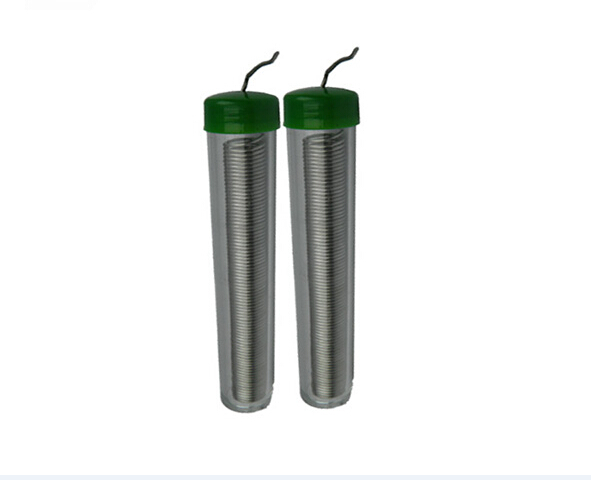

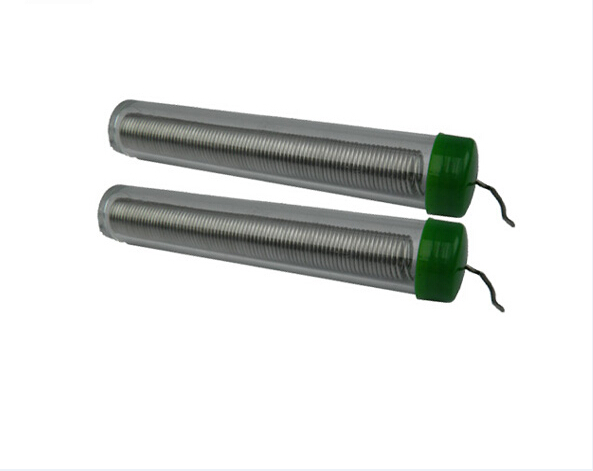

Tube packing:

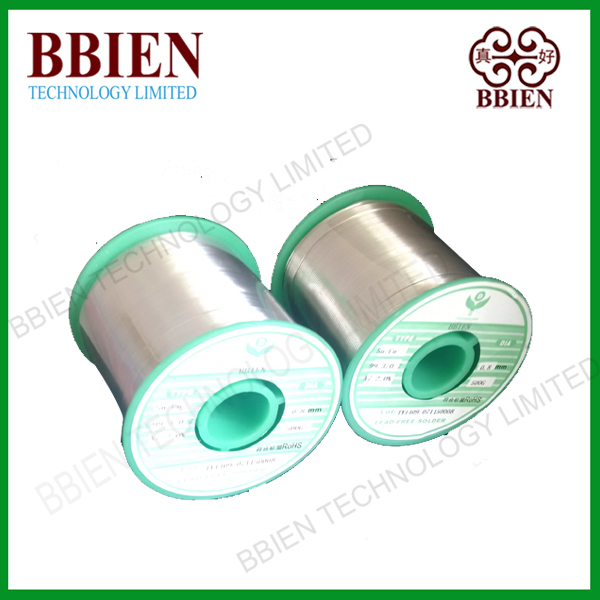

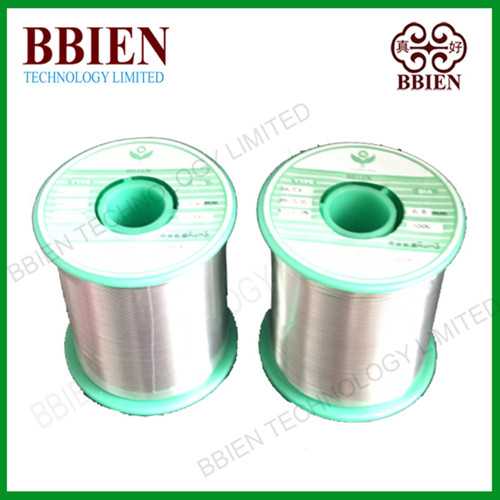

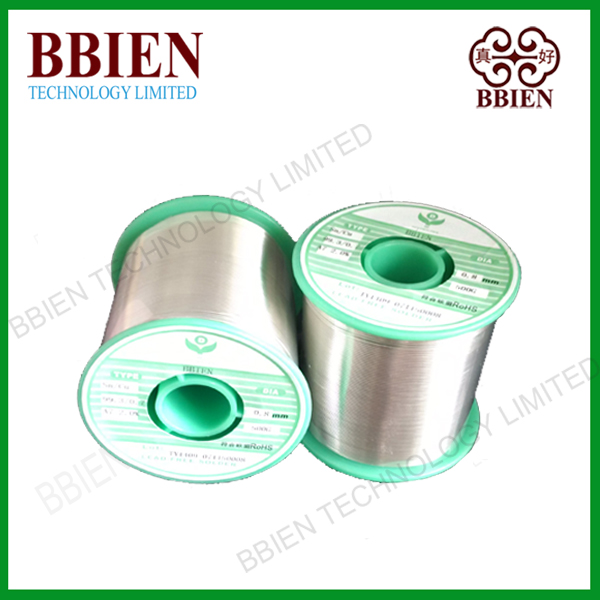

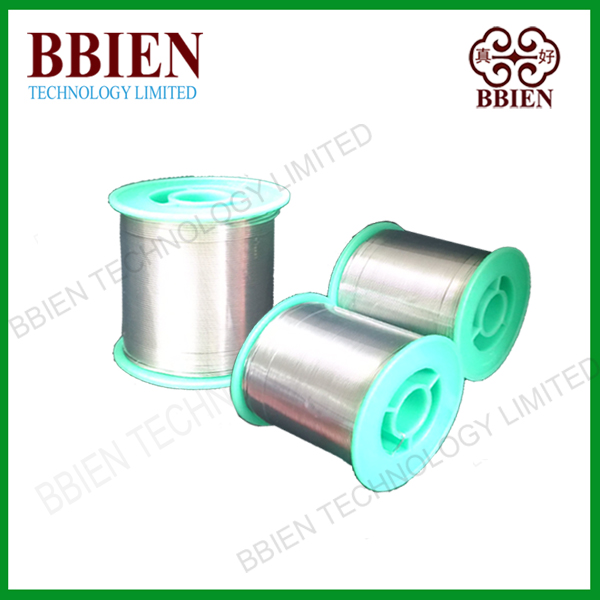

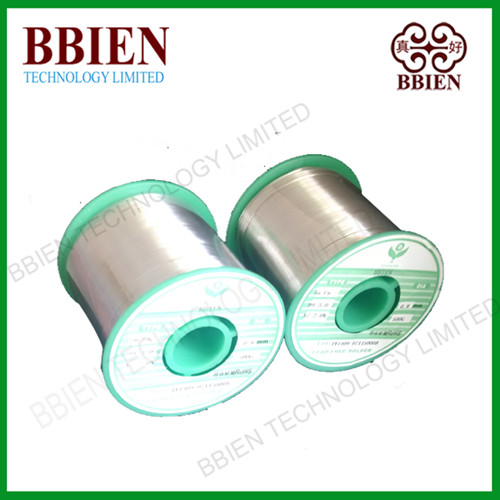

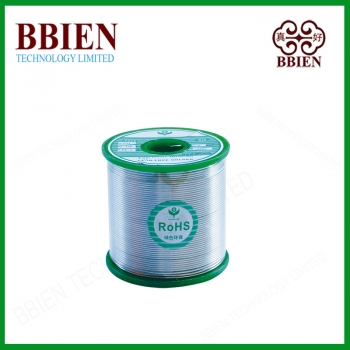

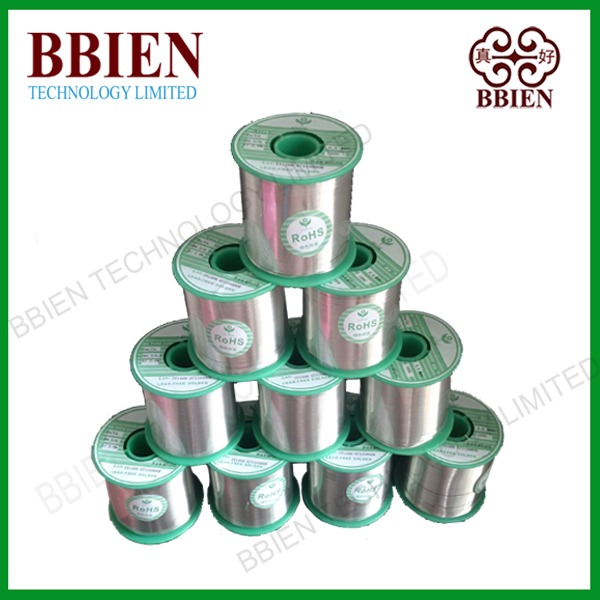

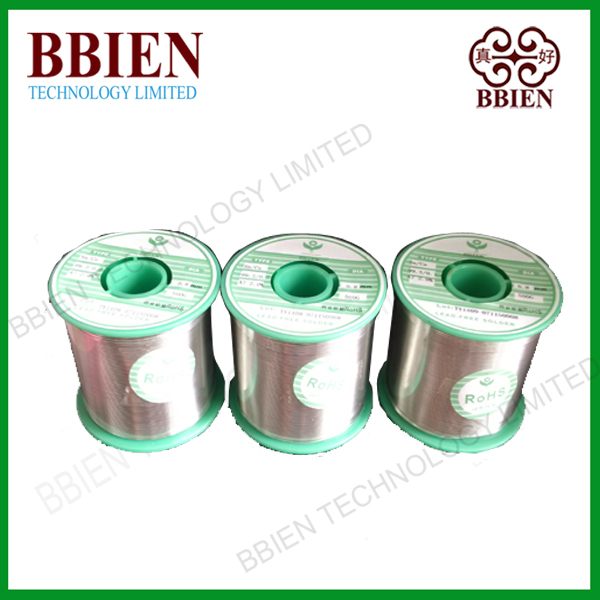

spool packing：

Shipping way:
We have a cooperation with big express company,such as CHINA POST(EMS),TNT,DHL,FEDEX,UPS;
We also connect with SF express inland market,while the delivery time is short.During shipping,we will follow up within 24 hours,and report the relevant process scheduling for you.
